Data Product Specification (DPS)

Data Product Specification (DPS) Version: 2.2

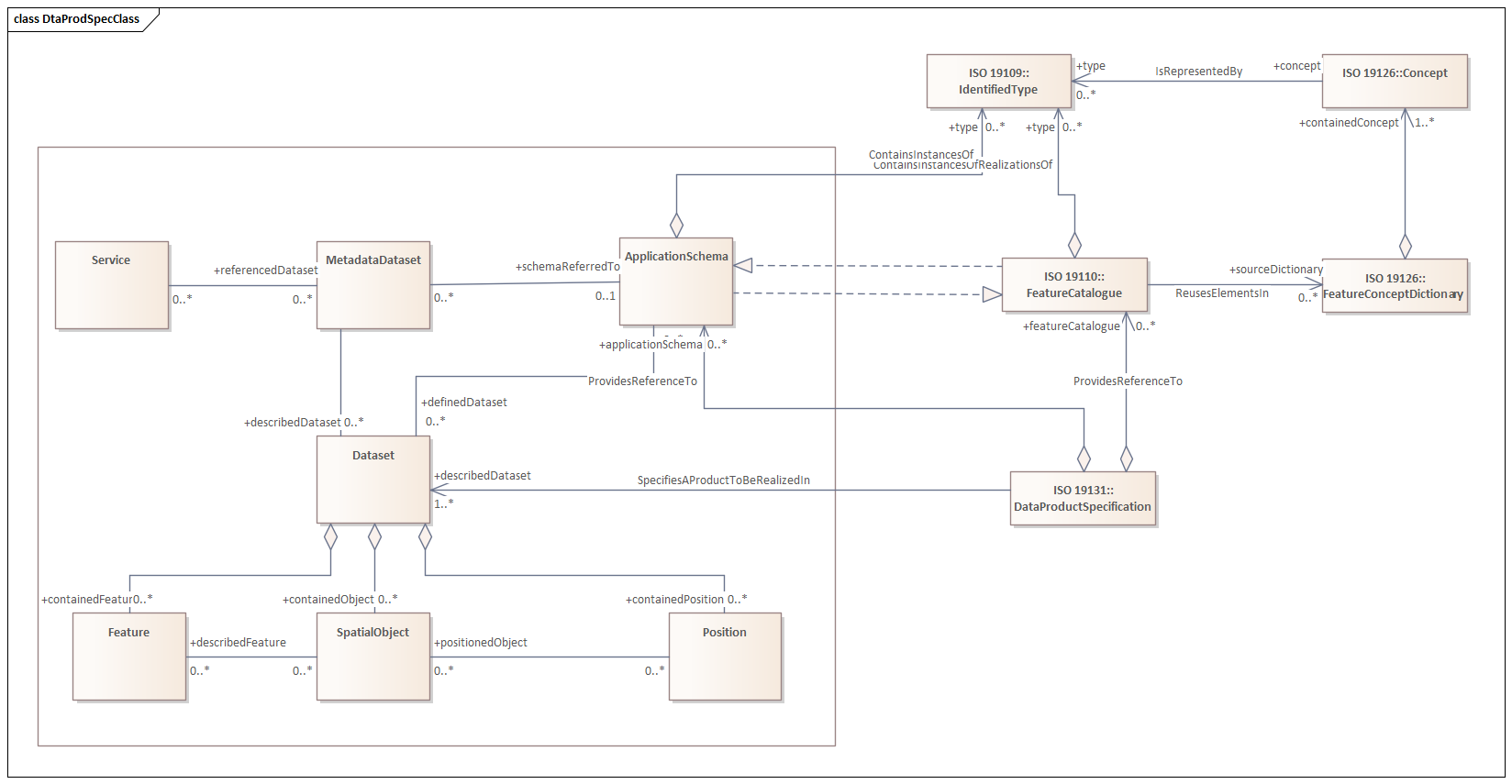

Figure 1. Classes in the dps namespace

Description

Data Product Specification (DPS) is an XML Schema implementation derived from ISO 19131, Geographic Information - Data Product Specification Amendment 1. It includes elements for defining geometry and functions for coverages. The XML schema was encoded using the encoding rules defined in ISO 19118, ISO 19139.

XML Namespace for Data Product Specification (DPS) Version: 2.2

The namespace URI for Data Product Specification (DPS) Version: 2.2 is https://schemas.isotc211.org/19131/-/dps/2.2.

XML Schema for Data Product Specification (DPS) Version: 2.2.0

dps.xsd is the XML Schema document to be referenced by XML documents containing XML elements in the dps namespace or by XML Schema documents importing the dps 2.2 namespace. This XML schema includes (indirectly) all the implemented concepts of the dps namespace.

https://schemas.isotc211.org/19131/-/dps/2.2.0/dps.xsd contains the following classes:

PortrayalSection
Purpose
ReferenceSystem
ReferenceSystemSection
ScopeSection
ServiceProperty
SpecificationDescription
SpecificationScope
TermEntry
UseCase
AbbreviationEntry
AdditionalInformation
AdditionalInformationSection
ConformanceQualityLevel
DataAcquisitionAndProcessing
DataCapture
DataCaptureSection
DataContentAndStructure
DataContentAndStructureSection
DataProductSpecification
DataQuality
DataQualitySection
Delivery
DeliveryFormat
DeliveryMedium
DeliverySection
IdentificationSection
Maintenance
MaintenanceAndUpdateFrequency
MaintenanceAndUpdateFrequency
MaintenanceSection
Metadata
MetadataElement
MetadataSection
Portrayal

The DPS 2.2.0 imports these other namespaces:

Name	Standard Prefix	Namespace Location	Schema Location
CITation and Responsibility	cit	https://schemas.isotc211.org/19115/-1/cit/1.3	cit.xsd
LANguage and localization	lan	https://schemas.isotc211.org/19115/-1/lan/1.3	lan.xsd
Metadata for Resource Identification	mri	https://schemas.isotc211.org/19115/-1/mri/1.3	mri.xsd
Metadata for Reference System	mrs	https://schemas.isotc211.org/19115/-1/mrs/1.3	mrs.xsd
Metadata for COnstraints	mco	https://schemas.isotc211.org/19115/-1/mco/1.3	mco.xsd
Metadata for Common Classes	mco	https://schemas.isotc211.org/19115/-1/mcc/1.3	mcc.xsd
Metadata for Maintenance Information	mmi	https://schemas.isotc211.org/19115/-1/mcc/1.3	mmi.xsd
Metadata for Application Systems	mas	https://schemas.isotc211.org/19115/-1/mas/1.3	mas.xsd
Metadata for Resource Content	mrc	https://schemas.isotc211.org/19115/-1/mrc/1.3	mrc.xsd
Metadata for Resource Lineage	mrl	https://schemas.isotc211.org/19115/-1/mrl/1.3	mrl.xsd
Metadata for Data Quality	mdq	https://schemas.isotc211.org/19157/-/mdq/1.2	mrl.xsd

Name

Standard Prefix

Namespace Location

Schema Location

CITation and Responsibility

cit

https://schemas.isotc211.org/19115/-1/cit/1.3

cit.xsd

LANguage and localization

lan

https://schemas.isotc211.org/19115/-1/lan/1.3

lan.xsd
