XML schema representations of geographic technology standards

Sensor Model Implementation (SMI)

Sensor Model Implementation Version: 1.1

UML diagram of Sensor Model Implementation codelists in the smi namespace
Figure 1. Codelist(s) in the ISO 19130-1 smi namespace

Description

SMI 1.1 is an XML Schema implementation derived from ISO 19130-1, Geographic Information - Imagery Sensor Models for Geopositioning - Part 1: Fundamentals.

The XML schema was encoded using the rules described in ISO/TS 19139:2007.

XML Namespace for smi 1.1

The namespace URI for smi 1.1 is https://schemas.isotc211.org/19130/-3/smi/1.1.

XML Schema for smi 1.1

https://schemas.isotc211.org/19130/-3/smi/1.1.0/smi.xsd is the XML Schema document to be referenced by XML documents containing XML elements in the smi 1.1 namespace or by XML Schema documents importing the smi 1.1 namespace. This XML schema includes (indirectly) all the implemented concepts of the smi namespace, but it does not contain the declaration of any types.

Sensor Model

https://schemas.isotc211.org/19130/-1/smi/1.1.0/sensorModel.xsd implements the UML conceptual schema defined in ISO 19130-1, Geographic Information - Imagery Sensor Models for Geopositioning - Part 1: Fundamentals, Clause 7.2. It was created using the encoding rules defined in ISO 19118, ISO 19139.

UML diagram of Sensor Model Implementation classes in the smi namespace

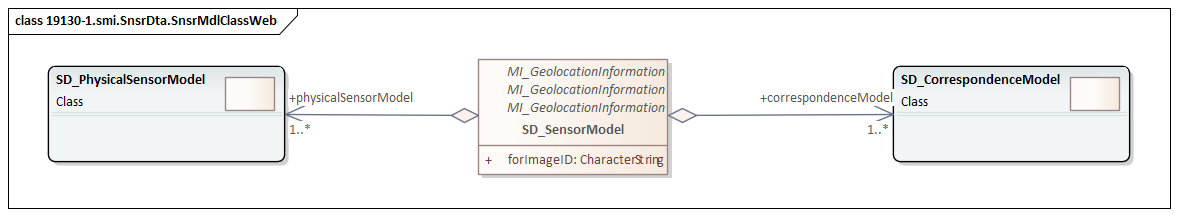

Figure 2. Classes in the ISO 19130-1 smi namespace

https://schemas.isotc211.org/19130/-1/smi/1.1.0/sensorModel.xsd contains the following class:

  • SD_SensorModel

Ground Control Points

https://schemas.isotc211.org/19130/-1/smi/1.1.0/groundControlPoints.xsd implements the UML conceptual schema defined in ISO 19130-1, Geographic Information - Imagery Sensor Models for Geopositioning - Part 1: Fundamentals, Clause 7.4. It was created using the encoding rules defined in ISO 19118, ISO 19139.

UML diagram of Sensor Model Implementation classes in the smi namespace

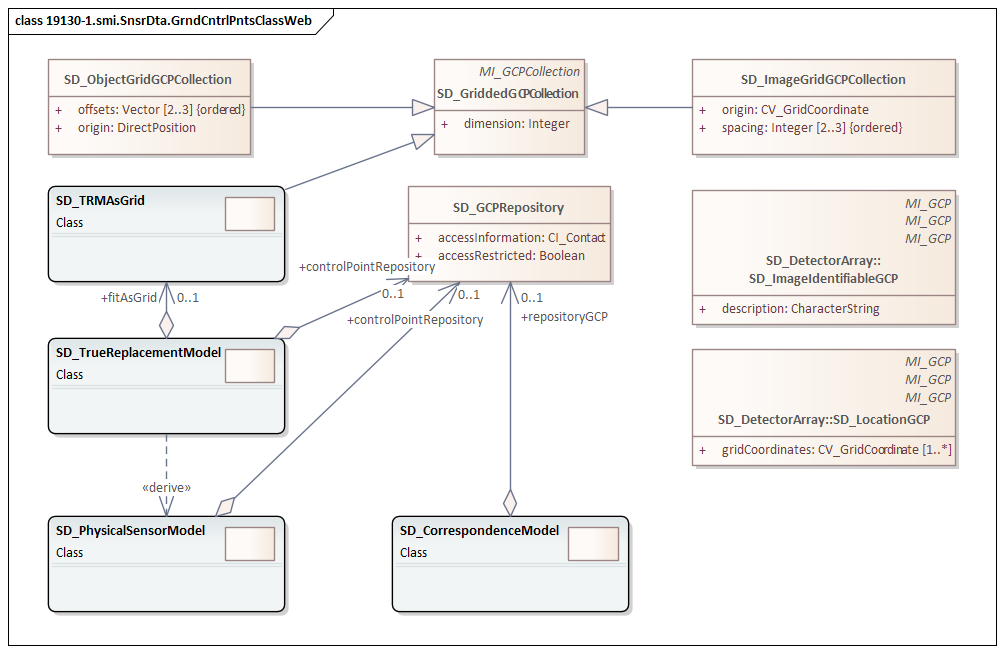

Figure 3. Classes in the ISO 19130-1 smi namespace, ground control points

https://schemas.isotc211.org/19130/-1/smi/1.1.0/groundControlPoints.xsd contains the following classes:

  • SD_GCPRepository

  • SD_LocationGCP

  • SD_ImageIdentifiableGCP

  • SD_GriddedGCPCollection

  • SD_ImageGridGCPCollection

  • SD_ObjectGridGCPCollection

Physical Sensor Model

https://schemas.isotc211.org/19130/-1/smi/1.1.0/physicalSensorModel.xsd implements the UML conceptual schema defined in ISO 19130-1, Geographic Information - Imagery Sensor Models for Geopositioning - Part 1: Fundamentals, Clause 8.4. It was created using the encoding rules defined in ISO 19118, ISO 19139.

UML diagram of Sensor Model Implementation classes in the smi namespace

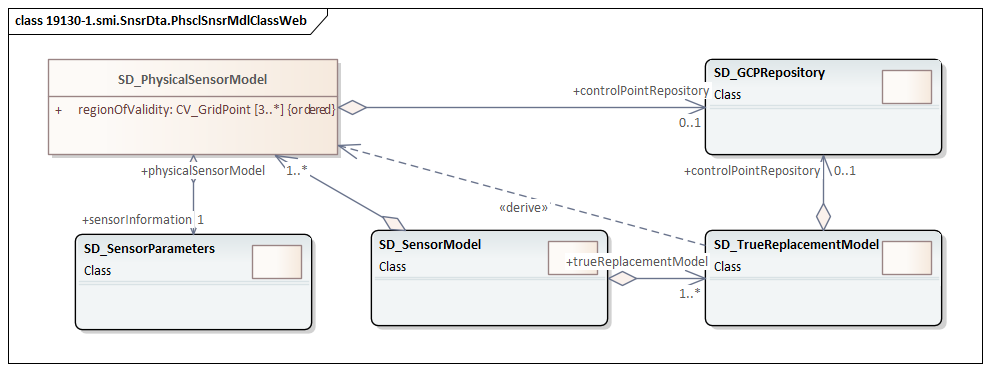

Figure 4. Classes in the ISO 19130-1 smi namespace, physical sensor model

https://schemas.isotc211.org/19130/-1/smi/1.1.0/physicalSensorModel.xsd contains the following classes:

  • SD_PhysicalSensorModel

Spatial Elements

https://schemas.isotc211.org/19130/-1/smi/1.1.0/spatialElements.xsd implements the UML conceptual schema defined in ISO 19130-1, Geographic Information - Imagery Sensor Models for Geopositioning - Part 1: Fundamentals, Clause 8.6. It was created using the encoding rules defined in ISO 19118, ISO 19139.

UML diagram of Sensor Model Implementation classes in the smi namespace
Figure 5. Classes in the ISO 19130-1 smi namespace, non-physical sensor model

https://schemas.isotc211.org/19130/-1/smi/1.1.0/spatialElements.xsd contains the following classes:

  • SD_Position

  • SD_EarthMeasuredLocation

  • SD_OrbitMeasuredLocation

  • SD_Attitude

  • SD_AngleAttitude

  • SD_MatrixAttitude

  • SD_Dynamics

  • SD_PlatformDynamics

  • SD_PositionAndOrientation

  • SD_PlatformParameters

Sensor Parameters

https://schemas.isotc211.org/19130/-1/smi/1.1.0/sensorParameters.xsd implements the UML conceptual schema defined in ISO 19130-1, Geographic Information - Imagery Sensor Models for Geopositioning - Part 1: Fundamentals, Clause 8.5. It was created using the encoding rules defined in ISO 19118, ISO 19139.

UML diagram of Sensor Model Implementation classes in the smi namespace

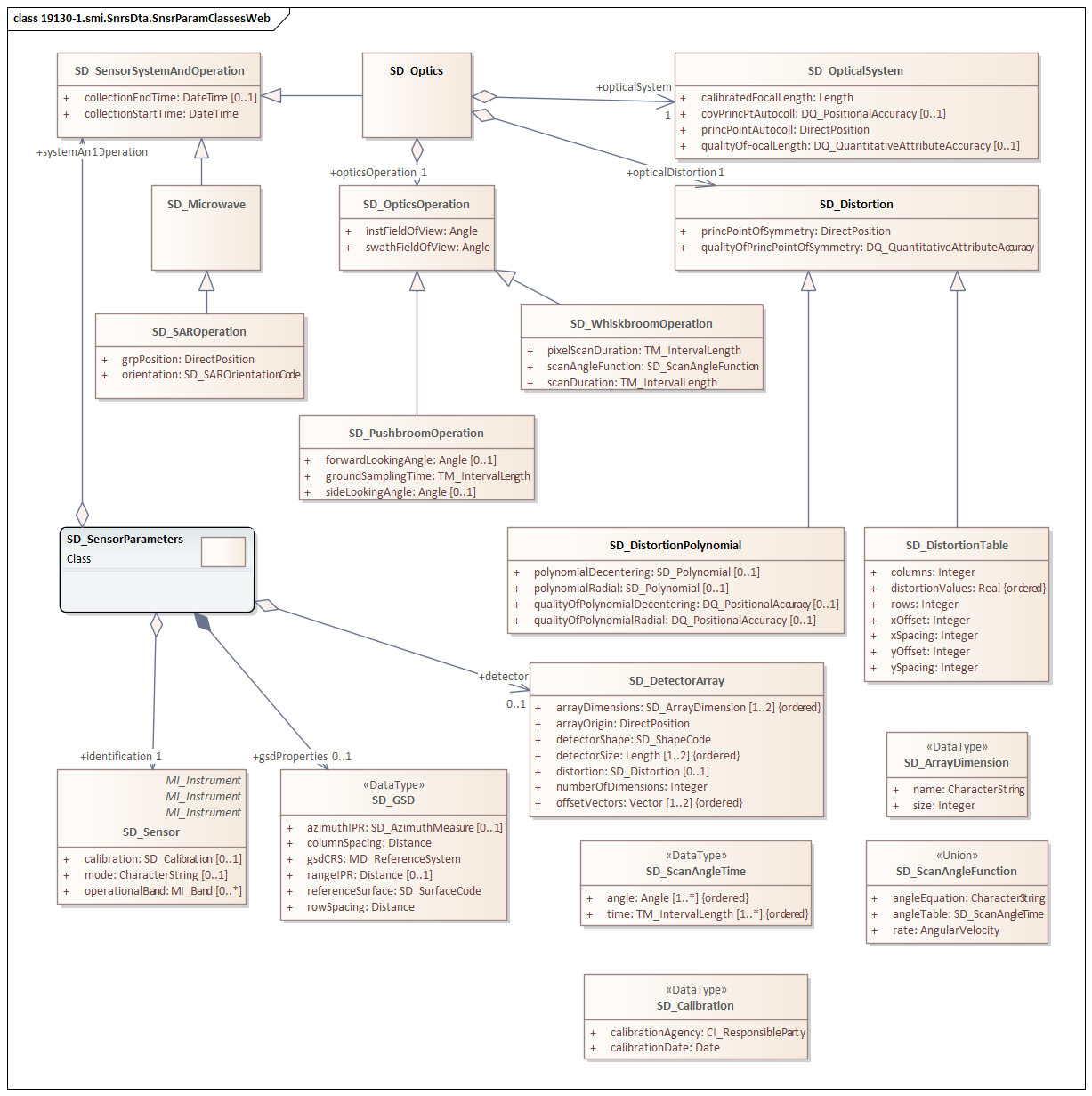

Figure 6. Classes in the ISO 19130-1 smi namespace, sensor parameters

https://schemas.isotc211.org/19130/-1/smi/1.1.0/sensorParameters.xsd contains the following classes:

  • SD_Sensor

  • SD_Calibration

  • SD_GSD

  • SD_AzimuthMeasure

  • SD_DetectorArray

  • SD_ArrayDimension

  • SD_SensorSystemAndOperation

  • SD_Microwave

  • SD_Optics

  • SD_OpticalSystem

  • SD_SAROperation

  • SD_OpticsOperation

  • SD_WhiskbroomOperation

  • SD_PushbroomOperation

  • SD_ScanAngleFunction

  • SD_ScanAngleTime

  • SD_Distortion

  • SD_DistortionPolynomial

  • SD_DistortionTable

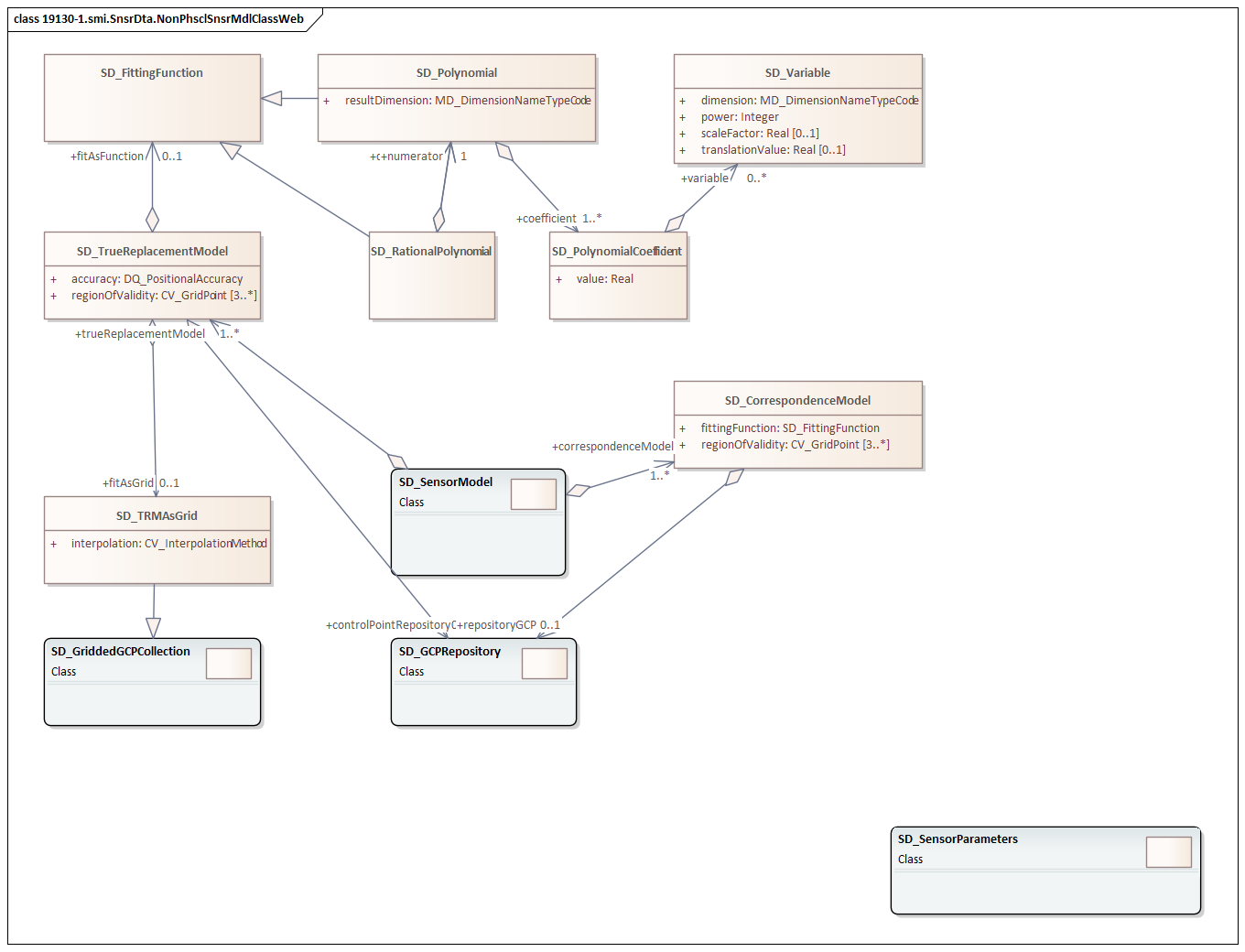

True Replacement Model

https://schemas.isotc211.org/19130/-1/smi/1.1.0/nonPhysicalSensorModel.xsd implements the UML conceptual schema defined in ISO 19130-1, Geographic Information - Imagery Sensor Models for Geopositioning - Part 1: Fundamentals, Clause 9. It was created using the encoding rules defined in ISO 19118, ISO 19139.

https://schemas.isotc211.org/19130/-1/smi/1.1.0/nonPhysicalSensorModel.xsd contains the following classes:

  • SD_FittingFunction

  • SD_Polynomial

  • SD_RationalPolynomial

  • SD_PolynomialCoefficient

  • SD_Variable

  • SD_TrueReplacementModel

  • CV_GridPoint

  • SD_TRMAsGrid

  • CV_InterpolationMethod

  • SD_CorrespondenceModel

ISO 19130-1 Code lists

https://schemas.isotc211.org/19130/-1/smi/1.1.0/codeList.xsd implements the codelists from the UML conceptual schema defined in ISO 19130-1, Geographic Information - Imagery Sensor Models for Geopositioning - Part 1: Fundamentals. It was created using the encoding rules defined in ISO 19118, ISO 19139.

UML diagram of Sensor Model Implementation codelists in the sim namespace

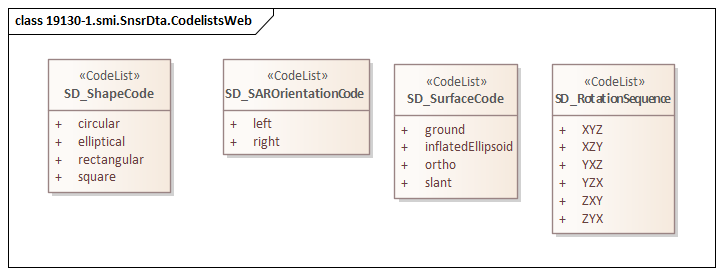

Figure 7. Codelist(s) in the ISO 19130-1 smi namespace

https://schemas.isotc211.org/19130/-1/smi/1.1.0/codeList.xsd contains the following codelists/enumerations:

  • SD_ShapeCode

  • SD_SurfaceCode

  • SD_SAROrientationCode

  • SD_RotationSequence

The ISO 19130-1 smi 1.1 namespace imports these other namespaces:

Name Standard Prefix Namespace Location Schema Location

Geographic Common Objects

gco

https://schemas.isotc211.org/19103/-/gco/1.2.0

gco.xsd

CITation and responsibility

cit

https://schemas.isotc211.org/19115/-1/cit/1.3.0

cit.xsd

Metadata for Spatial Represenation

mrs

https://schemas.isotc211.org/19115/-1/msr/1.3.0

msr.xsd

Metadata for ACquisition

mac

https://schemas.isotc211.org/19115/-2/mac/2.2.0

mac.xsd

Metadata for Data Quality

mdq

https://schemas.isotc211.org/19157/-/mdq/1.2.0

mdq.xsd

Referencing By Coordinates

rbc

https://schemas.isotc211.org/19111/-/rbc/3.1.0

rbcStubs.xsd

Schemas for Coverages Geometry

gmcov

http://www.opengis.net/gmlcov/1.0

gridPoint.xsd

Sensor Web Enabled

swe

http://www.opengis.net/swe/2.0

http://schemas.opengis.net/sweCommon/2.0/swe.xsd

Sensor Meta-Language

sml

http://www.opengis.net/sensorml/2.0

http://schemas.opengis.net/sensorML/2.0/sensorML.xsd

Working Versions

When revisions to these schema become necessary, they will be managed in the ISO TC211 Git Repository.
